- Operator with encoder.
- “Adaptive Speed and Torque Technology” to ensure a lasting, constant and smooth speed during movement.
- Control board with terminal blocks, graphic display and storage for up to 250 users.
- Four safety inputs which can be configured to directly manage the (8k2Ω) resistive sensitive safety-edges.
- User-friendly release lever for manually opening the gate.
- Set up to fit the 806SA-0120 clock control board for managing up to eight settings for opening and closing manoeuvres.
CAME 24V BXV 600 STANDARD Sliding Gate Kit with Encoder
£496.00 excl. VAT
CAME GARD GT4 Deluxe Barrier Kit with Encoder - up to 5m
£1,355.76 excl. VAT
CAME 36V BKV 2000P Sliding Gate Kit with Encoder
£931.00 excl. VAT
Plus version operator with 36 V motor, featuring a control board with graphic display, Adaptive Speed & Torque Technology, 4 safety inputs, magnetic limit switches and clock accessory included for sliding gates weighing up to 2000 kg that are up to 20-m long.
Description
Downloads
Product Video
No video available.
Technical Drawing

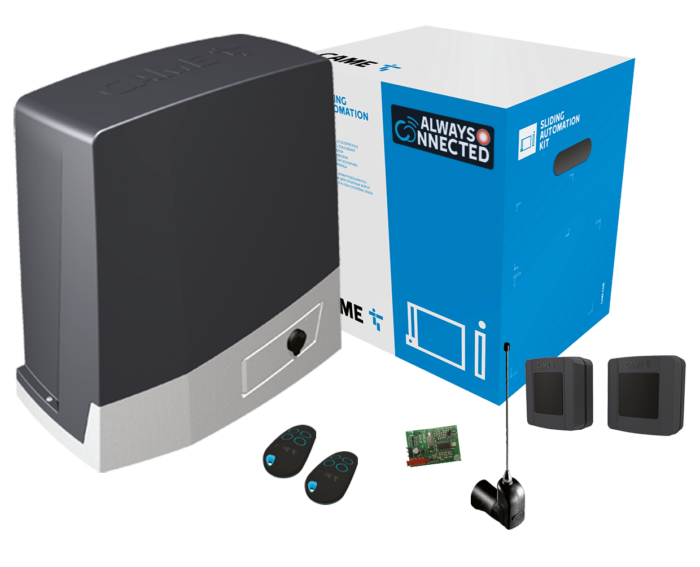

KIT INCLUDES
| ITEM | QUANTITY |
| BKV Gearmotor | 1 |
| ZN8 Built-in Control Panel | 1 |
| Pair of DLX Surface mount photocells | 1 |
| 433MHz 4-button transmitter | 2 |
| Tuned Antenna | 1 |
| Plug-in Radio Frequency Card | 1 |
| FREE CAMECONNECT Module and Sim | 1 |
SPECIFICATIONS
- Motor supply, Â Â 36 V DC
- Power, Â Â 250 W
- Absorption, Â Â 9 A
- Cycles/Hour, Â Â CONTINUOUS USE
- Manoeuvring Speed, Â Â 12 m/min
- Protection Level, Â Â Â Â Â IP54
- Leaf max dimension, Â Â Â Â Â 20 m
- Leaf max weight, Â Â Â Â Â 2000 kg
